ACQUISITION |
Lodger facilities at RAF Station Sydenham
Transferred
to Admiralty control June 1943. |
|
COMMISSIONED |
21 June 1943 as H.M.S. GADWALL, accounts 'on Books of
CAROLINE'. Independent command bearing own accounts from
01 October 1944.
01 May 1946 Re-Commissioned as H.M.S.
GANNET III
Became civilian manned facility from 1959. |
|
PAID OFF |
30 April 1946 9As GADWALL)
31 May 1959 (GANNET III). |
|
CLOSED |
02 July 1973 returned to R.A.F. control. |
|
|
|
|
C.O. |
Commander
(P) H. Wright RN 16 June 1943
Commander (P) M.C. Pascoe (ret)
10.02.44
|
|
|
|
|
FUNCTION |
Aircraft Maintenance Yard
Facilities for the
embarkation and disembarkation of aircraft.
Reserve aircraft storage
Support for disembarked squadrons |
|
ADDRESS |
R.N. Air Station
Belfast,
Northern Ireland |
|

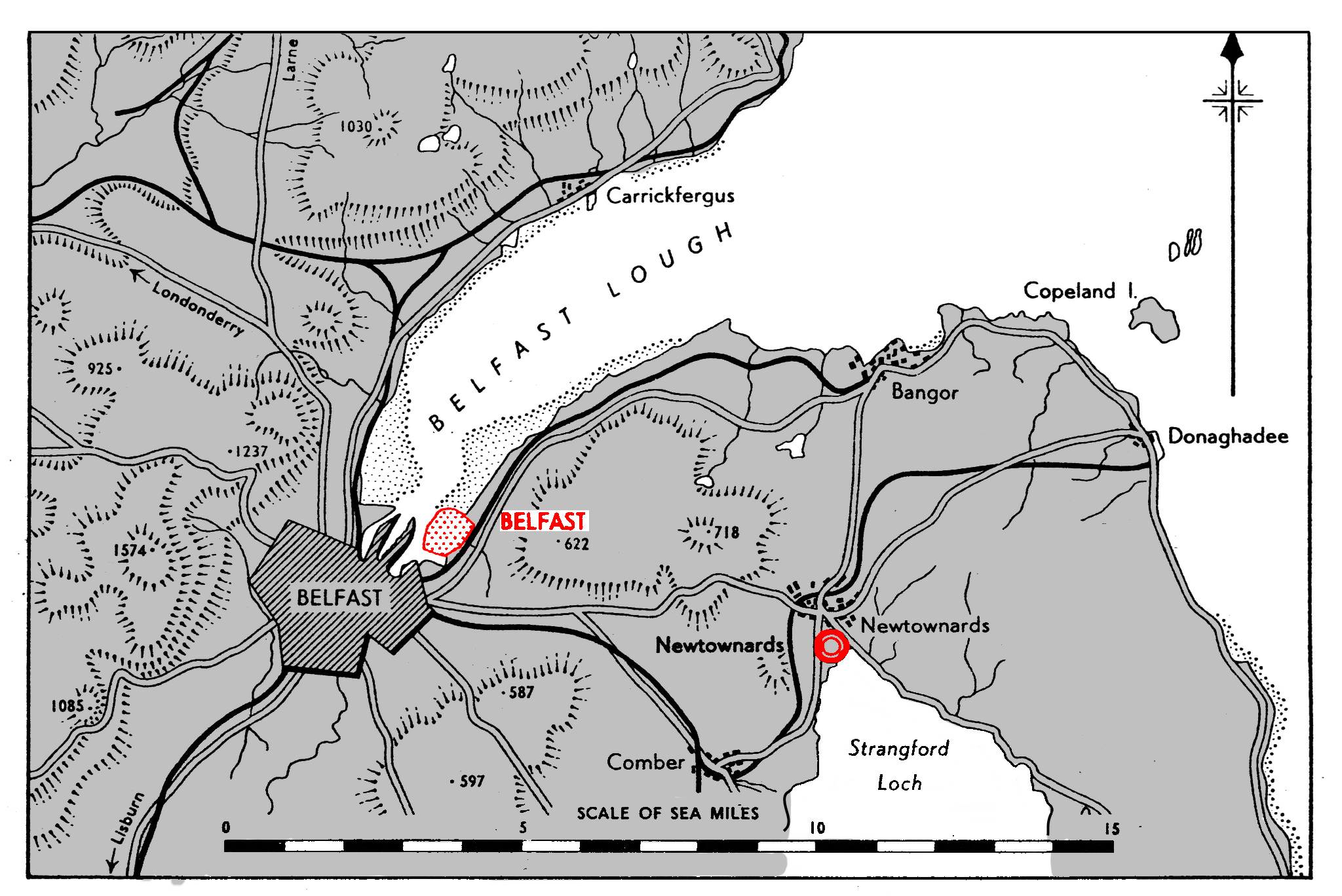

LOCALITY
|
The airfield is built on a level expanse of land forming
the E. side of Belfast Docks between the coastal railway
and the sea wall.
Sydenham railway station adjoins its
SE. corner. |
|
LANDMARKS |
Belfast Lough, with the harbour and city of Belfast art its
head.
|
|
ROAD AND RAIL ACCESS |
Direct road and railway communications with Belfast. |
|
|
|
|
| |
|
|
|
|
CONTROL |
Control Building on SE. side of airfield, inside
perimeter track near 42 end of runway 14/32. A.T.C.
civilian manned 9730 - sunset daily.
Ground signals
area adjacent NW. of Control building, |
|
ELEVATION |
18 ' above M.S.L.
|
|
RUNWAYS |
Two, concrete
|
|
|
|
Extensibility |
|
05/23 |
QDM. 146°
-226°
|
1100 x 67 yds. |
Subject to land reclamation
|
|
14/32 |
QDM. 143°
-323°
|
1100 x 67 yds. |
|
Original runway realigned when second
pier was built in 1945: |
|
13/31 |
QDM. 133°
-313°
|
1100 x 67 yds. |
|
|
|
|
|
|
|
|
TRACKS |
50' perimeter track.
|
|
OBSTRUCTIONS |
Navigation |
Mountain range with summit 1.574 ft, distant 5 miles W.
Land rising to over 600 ft. within 1½
miles E. |
|
Circuit |
Land rising to over 200 ft. within 2.000 yds.s
E. |
|
Approach |
Electricity Gris pylons 1,000 yds. from SW. end of
runway 05/23.
Railway 59 yds. from SE end of runway
14/32. |
|
APPROACH |
|
|
WIND INDICATOR |
Two windsock, one NW, side and one near Control
building. |
|
|
|
|
 |
|
|
|
|
HOMING - VISUAL |
By day |
None. |
|
By night |
None.
|
|
HOMING--RADIO |
D/F |
None. but M/F. post war. |
|
Beacons |
None.
|
|
APPROACH - VISUAL |
By day |
None. |
|
By night |
None.
|
|
APPROACH - RADIO |
Airfield and Approach controls on 6440 and 117.9
|
|
COMMUNICATION EQUIPMENT |
|
M/F & H/F |
2 transmitters, 1 receivers. |
|
VH/F |
? transmitters, ? receivers.
|
|
CALL SIGNS |
R/T |
BELFAST |
|
W/T |
MAK |
|
Identity letters |
BE |
| |
|
|
GROUND RADAR |
None. |
|
|
|
|
| |
|
|
|
|
ACCOMMODATION |
Living quarters at S. corner of the airfield and in
Victoria Park, adjacent SW.
Capacity:
|
Officers: |
58 |
|
Chiefs, P.O.s and ratings: |
440 |
|
W.R.N.S. Officers: |
6 |
|
W.R.N.S. Chiefs, P.O.s and ratings; |
125 |
|
|
ARMOURIES |
To accommodate approx 1½
squadrons.
|
|
COMPASS BASE |
One, in A.M.Y., diameter 70'.
|
|
DISPERSAL |
8 A/C standings off perimeter track on E. side and 9 on
N. side.
|
|
HANGARS |
Hangars in four main sites - Squadron on SW. side,
Storage on NE and SW. side, Receipt & Despatch on W.
side, and Class B repair yard on E. Side.
|
Number /Type |
Size |
Door Height |
Door Width |
|
1 x Bellman (Squadron) |
176' x 95' |
25' |
90' |
|
1 x Bellman (Squadron) |
210' x 82' |
20' |
200' |
|
7 x Mains (Storage) |
60' x 70' |
17' |
55' |
|
4 Fromson (Receipt & Despatch) |
92' x 70' |
17' |
55' |
|
1 x T.2 (Receipt & Despatch) |
240' x 114' |
25' |
113' 6" |
|
1 x T.2 (Air yard) |
240' x 114' |
25' |
113' 6" |
|
5 x Pentad (Repair yard) |
185' x105' |
25' |
105' |
|
8 x Workshops |
84' x 60' |
10' |
10' |
|
4 x Bessonneau
temporary hangers used to
aircraft assembly at the disembarkation site. |
138' x 64' 10'' |
13' 2''
|
64' 10' |
|
|
|
|
|
|
|
MEDICAL |
Sick Bay on S. side of airfield, near hangars.
|
|
METEOROLOGICAL |
Meteorological office in the Control building. Fill
meteorological service by Naval personnel available.
|
|
FUEL AND OIL |
|
Aviation: |
Storage for 4,000 gallons. All grades available. |
|
M/T: |
1.200 gallons |
|
Oil : |
No permanent storage. |
|
|
|
|
|
TEST BASE |
Proposed but not built.
|
|
TEST BUTT |
M.G. range on SE. side of airfield.
|
|
WORKSHOPS |
R.N.A.M.Y. facilities.
|
|
VISITORS |
Visitors parking area behind Control Building.
|
|
EXPLOSIVES |
No known. Practice stocks to provision 2 T.B.R. and 1
F.R. squadron to be held.
|
|
BOMBING AND FIRING RANGES |
Wartime only |
|
Air to air |
One. |
|
A/S bombing |
One. |
|
|
|
|
|
|
|
Information taken from CB 4368 B. Admiralty Handbook
of Naval Air Stations Aug. 45 & BR. 1807 Admiralty Handbook
of Royal Naval Air Stations Home and Abroad. Mar. 1949 Sep. 1955 |
|
 |
List of first and second line squadrons, station
flight and other flying units based at this location |
|
|
|
|
702
|
|
|
706
|
|
|
721
|
|
|
800 |
|
|
804 |
|
|
807 |
|
|
808 |
|
|
811 |
|
|
812 |
|
|
813 |
|
|
815 |
|
|
818 |
|
|
819 |
|
|
822 |
|
|
85 |
|
|
826 |
|
|
827 |
|
|
835 |
|
|
836 |
|
|
836M |
|
|
838 |
Torpedo, Bomber and Reconnaissance Squadron
Disembarked from
H.M.S. ACTIVITY 30.07.43.
Embarked in MAC ship MV RAPANA 02.08.43.
Equipped with 4 Swordfish 1s.
|
|
842 |
|
|
845 |
|
|
848 |
|
|
849 |
|
|
857 |
|
|
870 |
|
|
881 |
|
|
882 |
|
|
885 |
|
|
886 |
|
|
887 |
|
|
888 |
|
|
889 |
|
|
891 |
|
|
899 |
|
|
1772 |
|
|
1790 |
|
|
1830 |
|
|
1831 |
|
|
1833 |
|
|
1835 |
|
|
1836 |
|
|
1843 |
|
|
1850 |
|
|
1851 |
|
|
1852 |
|
 |
|
PAGE UNDER
CONSTRUCTION
Click here for a list of
Primary sources
Additional sources:
Admiralty Fleet Orders:
4877/44 R.N. Air Station, Belfast - Accounting
Arrangements.
Confidential Admiralty Fleet Orders:
|
|
|
| |
|
|
| |
|
June 1943 - April 1946
1957 - 73
|
| |
|
View Larger Map

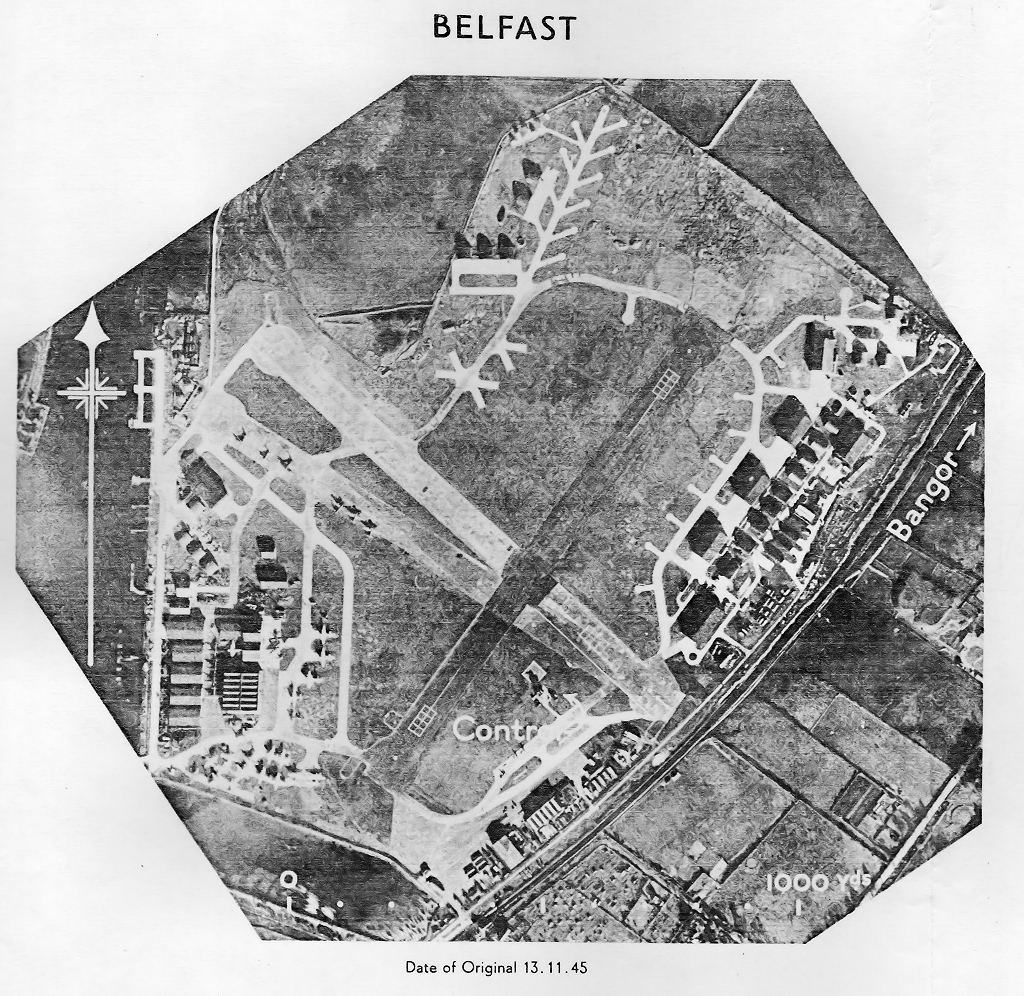

Overhead view of RNAS Belfast taken November 1945. (Part of
Plate 6 BR. 1807 Admiralty Handbook of Royal Naval Air Stations
Home and Abroad. March 1949)

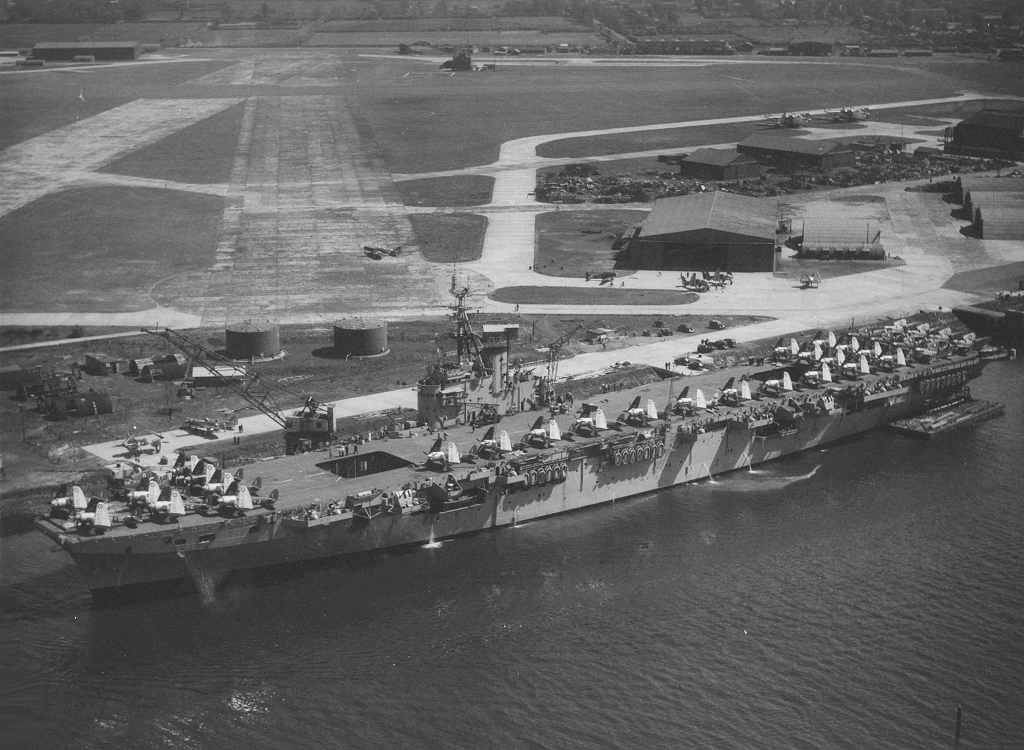

RCN Sea Furies being loaded aboard HMCS Magnificent 24 May 1948.
|
| |
|
|
