Latitude 55°52'19"N  Longitude 04°25'59"W



ACQUISITION

Lodger facility for an RN Air Section on RAF station from 19 June 1940. Transferred from No.19 Group RAF  to Admiralty 11 August 1943.

OPENED




COMMISSIONED

20 September 1943


PAID OFF

31 October 1963 and transferred to Ministry of Aviation.


CLOSED




FUNCTION

Aircraft Maintenance Yard, Reserve Aircraft Storage. Salvage.No. 602(City of Glasgow) Squadron R. Aux A.F., Glasgow


University Air Squadron. A.T.C. Gliding School. Northern Engine Holding Unit. Parent station for R.N.A.S. Ayr and Machrihanish. Contact Airfield. No. 1830 & 1843 Squadron R.N.V.R.


ADDRESS

R.N. Air Station,

Abbotsinch,

Paisley.

Scotland.



LOCALITY

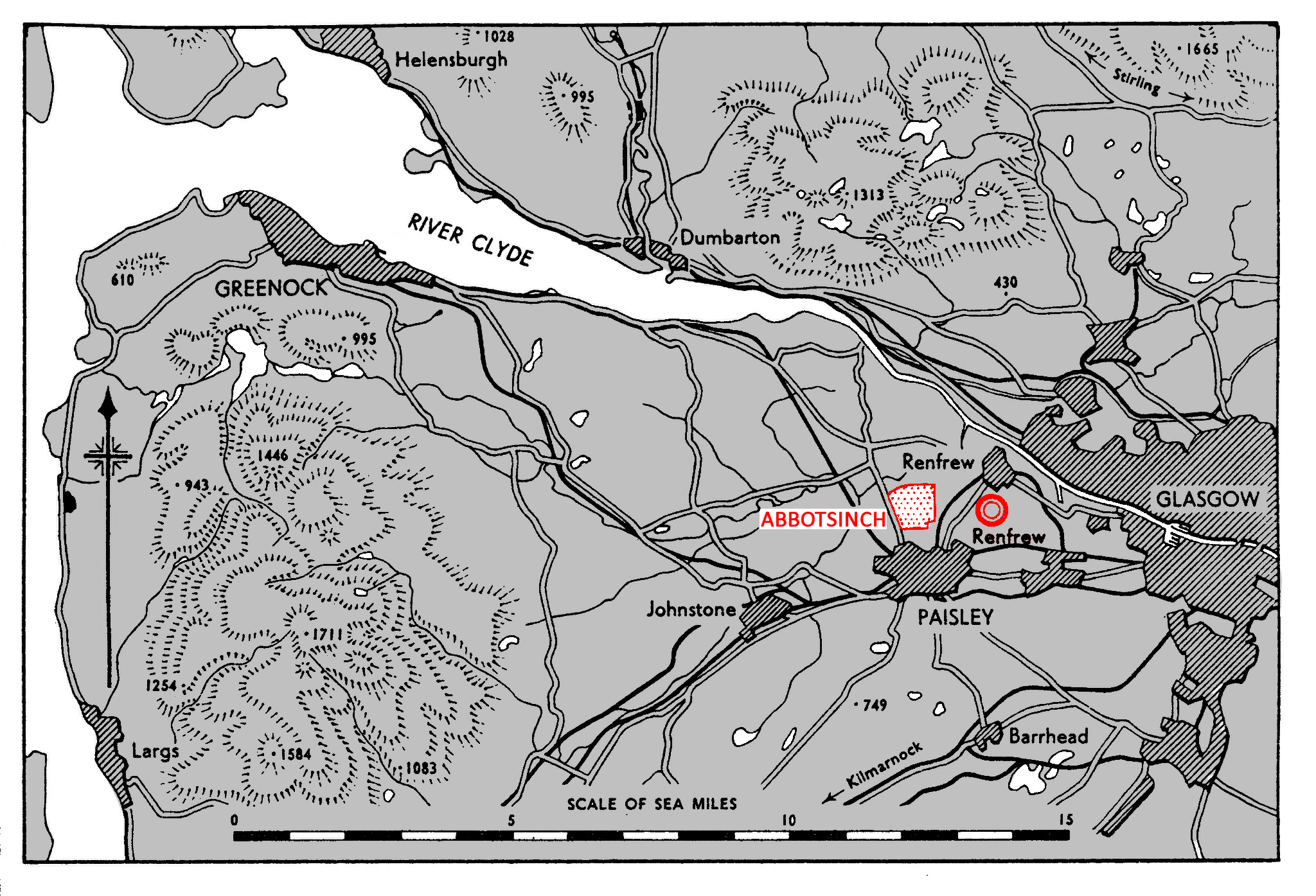

The airfield is situated on the northern outskirts of Paisley, 2½ miles W,. of the Govan district of Glasgow.



LANDMARKS

The Firth of Clyde with the River Clyde passing 1½ NE.  The city of Glasgow and the town of Paisley.



The airfield lies within the fork of the Black Cart and White Cart waters which form a junction about  1.000 yds. NE. of the airfield before flowing into the Clyde..



ROAD AND RAIL ACCESS

Main road communication with Paisley and Glasgow. Railway station at Paisley on the Greenock-Glasgow line.



CONTROL

Control building on the E. side onside the perimeter track, in front of apron. Keeps watch 1800 -1600 or sunset, whichever id the earlier, Mondays to Fridays only. No night flying, No D/F watch.



ELEVATION

18' above M.S.L.

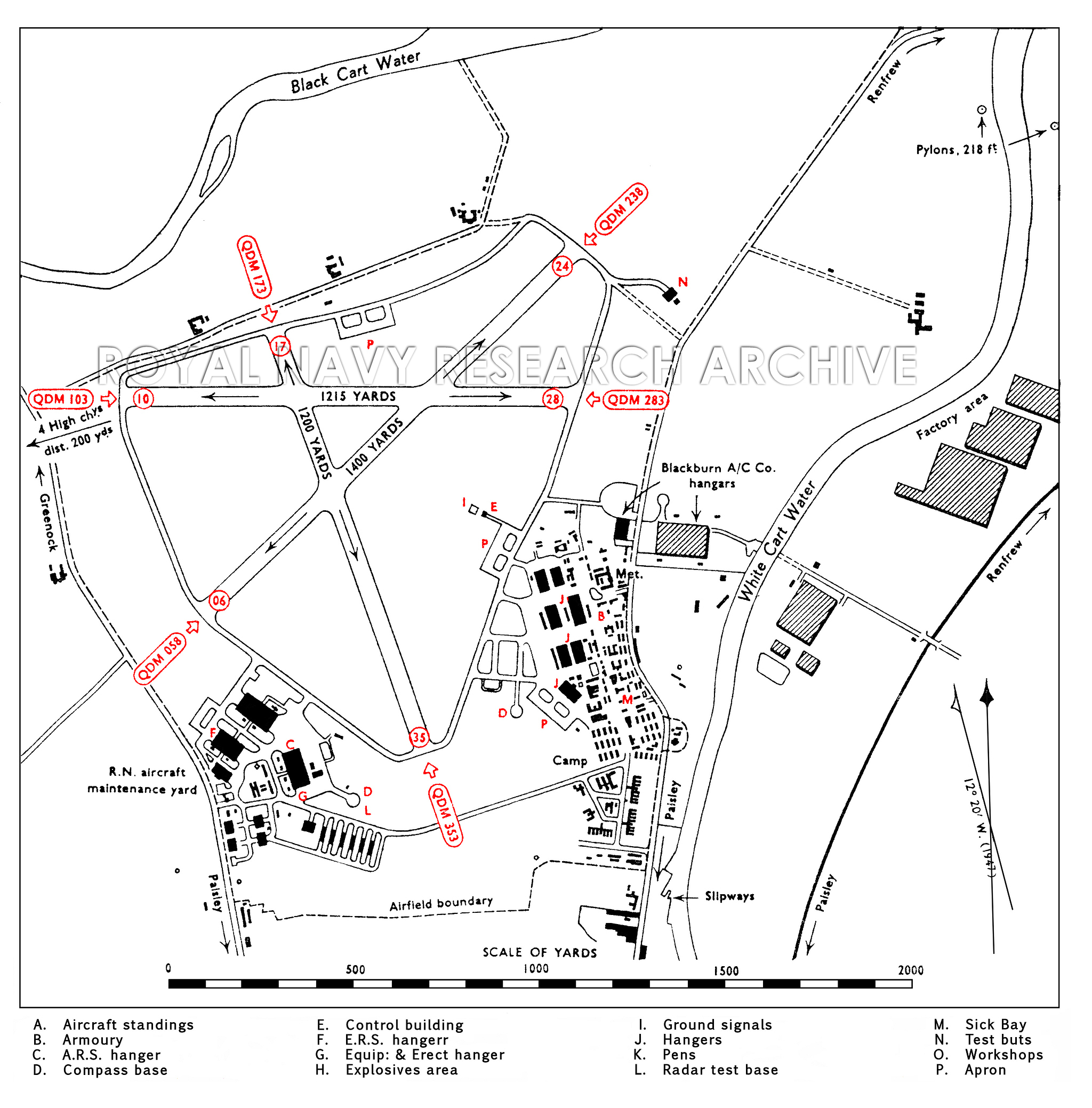

RUNWAYS /LANDING AREA

Three, steel mesh.

                                                                 Extensibility
06/24 QDM. 058°/238° .... 1293 X 50  yds.   2000

10/28 QDM. 103°/283° .... 1224 X 50  yds.   1600*

17/35 QDM. 173°/353° .... 1206 X 50  yds.    1600*



*Require road diversion

Note: W. end of runway 10/28 to be curtailed in accordance with A.F.O. 3594/47.



TRACKS

40' perimeter track from 24 to 06 runways.



OBSTRUCTIONS

Navigation:

Mountains rise to 1199', 4½ miles N. Hills rising to 749' 3½ miles SSW.



Circuit:

Rising ground to E. and S.



Approach:

Two pylons, 218', 1200 yds. ENE. Four tall chimneys, 450 yds. from 10 end of runway 10/28.



APPROACH

Recommended sector, mean QDM 065°


WIND INDICATOR

Windsocks on the R. side of the landing area inside perimeter track.





HOMING-VISUAL

None.





HOMING-RADIO

D/F:

H/F/ and VH/F.

Beacon:

YG and 251 MS.



APPROACH-VISUAL

  None.





APPROACH-RADIO

None.



COMMUNICATION EQUIPMENT

M/F and H/F:

VH/F:



2 transmitters, 3 receivers.

4 transmitters, 4 receivers.



CALL SIGNS

R/T

ABBOTIN

W/T

GYV

Identity letters



AC

GROUND RADAR

None.





ACCOMMODATION

Living quarters in he SE. corner of the airfield.



Capacity:

Officers:

103

Chiefs, P.O.s and ratings:

972

W.R.N.S. Officers:

6

W.R.N.S.  Chiefs, P.O.s and ratings;

93



ARMOURIES

Not known



COMPASS BASE

One, diameter 70' and one diameter 80'. the later being combined with the Radar test base.



DISPERSAL

On aprons

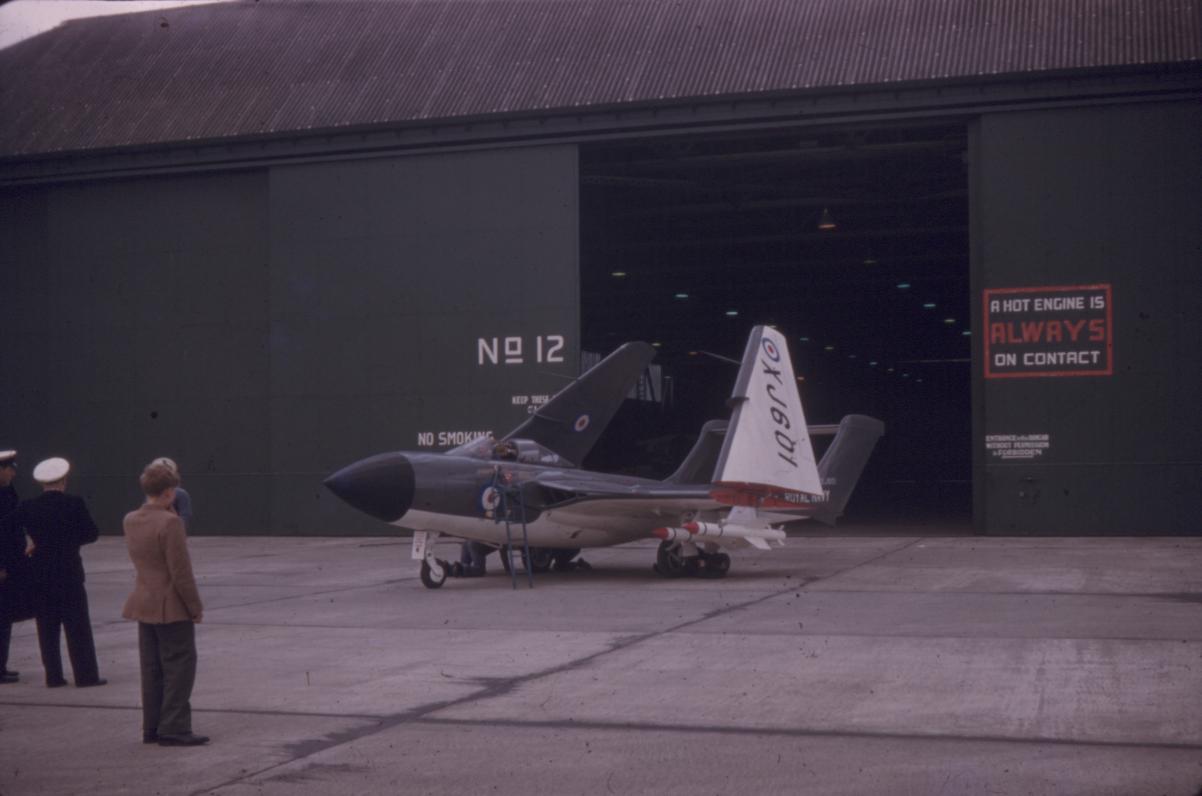

HANGARS

Storage hangar area on SE. side; Workshop hangar area on SW. side.



Number /Type

Size

Door Height

Door Width

4 R.A.F. Callender Hamilton

185' x 90'

17' 6"

 90'

2 Type "C"

300' x 150'

30'

150'

1 Type "C"

225' x 150'

30'

150'

4 Bellman

175' x 95'

25'

90'

1 End opening flight shed

240' x 100'

 20'

100'

2 Massillon arch

92' x 70'

-

-



MEDICAL

Sick quarters in Camp sire SE. of landing area.



METEOROLOGICAL

Office in Control building. Limited service by Naval personnel.



FUEL AND OIL

Aviation:

21,250 gallons.

M/T:

2,500 gallons.

Oil :

In barrels



TEST BASE

None.



TEST BUTT

M.G. test butt and 25 yd. range to NE.



WORKSHOPS

R.N. Aircraft workshop on SW. side of airfield.



VISITORS

On apron near Control building, for 6 aircraft.



BOMBING AND FIRING RANGES

None




Information taken from CB 4368 A. Admiralty Handbook of Naval Air Stations (Home) Aug. 45 and B.R. 1807. Admiralty Handbook of Naval Air Stations (Home & Abroad) Dec. 48





List of first and second line squadrons, station flight and other flying units based at this location



730

Communications squadron. Formed here in April, 1944. Moved to R.N.A.S. Ayr in July, 1944.


768

Deck Landing Training squadron. 1944 - 1946


771

 Fleet Requirements Unit


800



801



802



804



807



813



816



818

Disembarked from H. M. S. ILLUSTRIOUS with Swordfish aircraft July -august 1940


819



821



824



825



831



832



835



852



892



1702

From R.N.A.S. Lee-on-Solent with 6 Sea Otter aircraft 5 September,1945 embarked H.M.S. TROUNCER 12 September.


804



807



1830 R.N.V.R.

 1947 . 1957. Operated Firefly T.1 & A/S.6, Avenger A/S.4


1840



1843 R.N.V.R.



1951 . 1957. Operated Firefly T.3 & A/S.6, Seafury T.10, Sea Balliol T.21






PAGE UNDER CONSTRUCTION
